» Fise si prize industriale IP44/IP67

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

313.63438

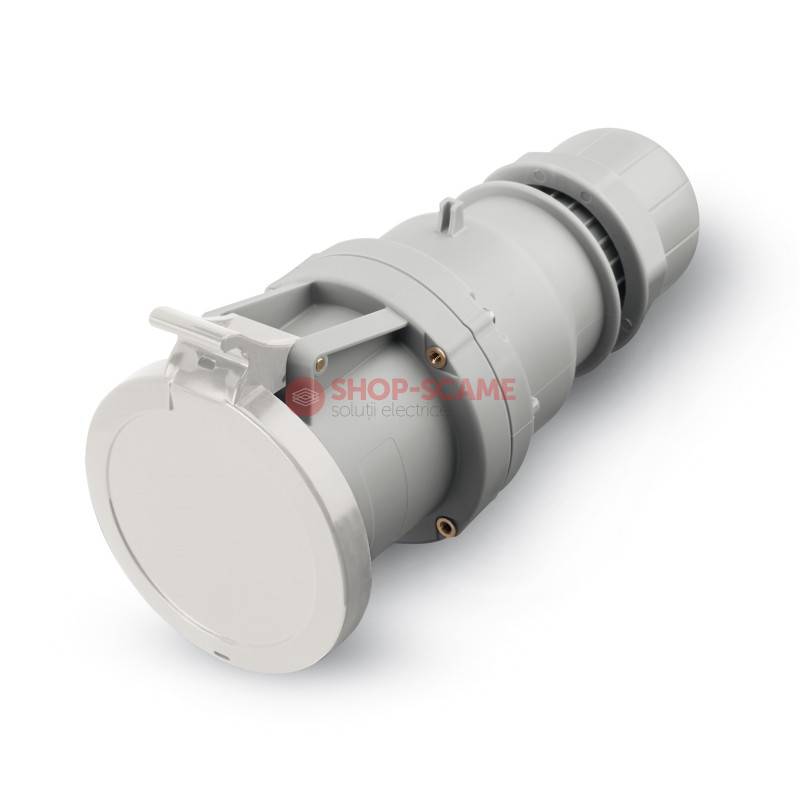

CONNECTOR SCAME 313.63438

Cod EAN: 8001636296234

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 232.01 Lei / 1

Pret cu TVA: 280.73 Lei / 1

Inainte »»

Master data
6NR Minimum order: 0KG Net Weight: 8001636296234 EAN code: 85366990 INTRASTAT code:

TechData
OPTIMA Series Commercial series: CONNECTOR Synthetical description: 63A Rated current: 2P+E Poles: 8h Hour position: >250V Rated voltage: DC Working frequency: GREY Colour: IP44/IP54 Protection degree: STRAIGHT Types of available outlets: Mantle terminals Terminals: CABLE GLAND Cable outlet:

Packaging
Carton Description: 24 Quantity: 8001636743585 EAN code: 0 KG Gross weight: 0 Volume: 0X0X0 () Dimensions: Box Description: 6 Quantity: 8001636743578 EAN code: 0 KG Gross weight: 0 Volume: 0X0X0 () Dimensions:

Approvals and Certifications

View certificate

Standards and Laws

	EN 60309-1 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations
	EN 60309-1/A1 (2007) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2/A1 (2007) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations
	EN 60309-1/A2 (2012) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2/A2 (2012) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations
