» Fise si prize industriale IP44/IP67

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

321.3246

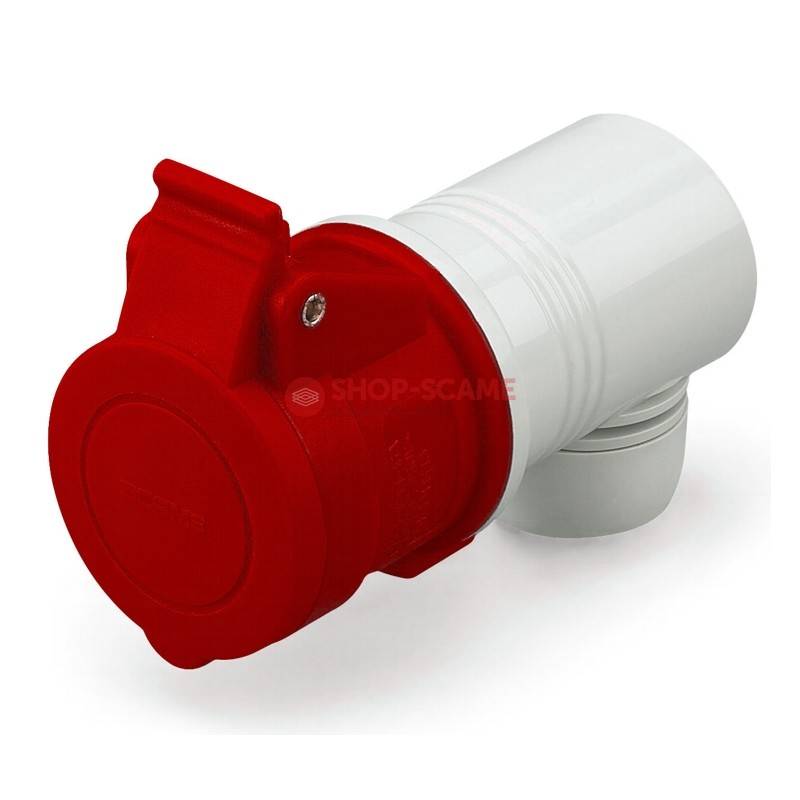

CONNECTOR 3P+E IP44 32A 6h 380-415V AC SCAME 321.3246

Cod EAN: 8001636047201

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 81.10 Lei / 1

Pret cu TVA: 98.13 Lei / 1

«« Inapoi

Inainte »»

Master data
10NR Minimum order: 0.267KG Net Weight: 8001636047201 EAN code: 85366990 INTRASTAT code:

TechData
EUREKA Series Commercial series: CONNECTOR Synthetical description: 32A Rated current: 3P+E Poles: 6h Hour position: 380-415V Rated voltage: 50Hz Working frequency: 60Hz Working frequency: RED Colour: IP44 Protection degree: 90° ANGLED Types of available outlets: Screw terminals Terminals: CABLE SLEEVE Cable outlet:

Packaging
Carton Description: 50 Quantity: 8001636879567 EAN code: 14.5 KG Gross weight: 66990 CCM Volume: 385X580X300 (MM) Dimensions: Box Description: 10 Quantity: 8001636944159 EAN code: 2.9 KG Gross weight: 9680 CCM Volume: 220X275X160 (MM) Dimensions:

Approvals and Certifications

View certificate

Standards and Laws

	EN 60309-1 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations

Annexed
