335.3208

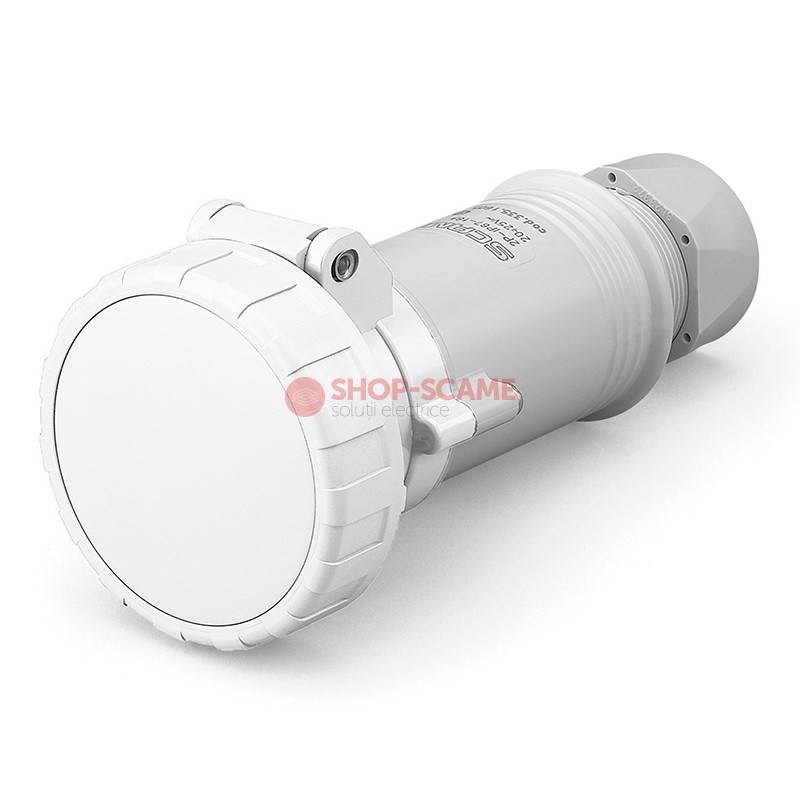

CONNECTOR 3P IP67 32A 12h 40-50V AC 50Hz SCAME 335.3208

Cod EAN: 8001636054070

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 85.13 Lei / 1

Pret cu TVA: 103.01 Lei / 1

«« Inapoi

Inainte »»

Master data
10NR Minimum order: 0.247KG Net Weight: 8001636054070 EAN code: 85366990 INTRASTAT code:

TechData
IEC309 Series Commercial series: CONNECTOR Synthetical description: 32A Rated current: 3P Poles: 12h Hour position: 40-50V Rated voltage: 50Hz Working frequency: 60Hz Working frequency: WHITE Colour: IP66/IP67 Protection degree: STRAIGHT Types of available outlets: Screw terminals Terminals:

Packaging
Carton Description: 50 Quantity: 8001636879413 EAN code: 13.5 KG Gross weight: 66990 CCM Volume: 385X580X300 (MM) Dimensions: Box Description: 10 Quantity: 8001636915173 EAN code: 2.7 KG Gross weight: 9680 CCM Volume: 220X275X160 (MM) Dimensions:

Approvals and Certifications

I.M.Q. - ENEC 03

Standards and Laws

	EN 60309-1 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations
