» Fise si prize industriale IP44/IP67

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

313.1640P.TR

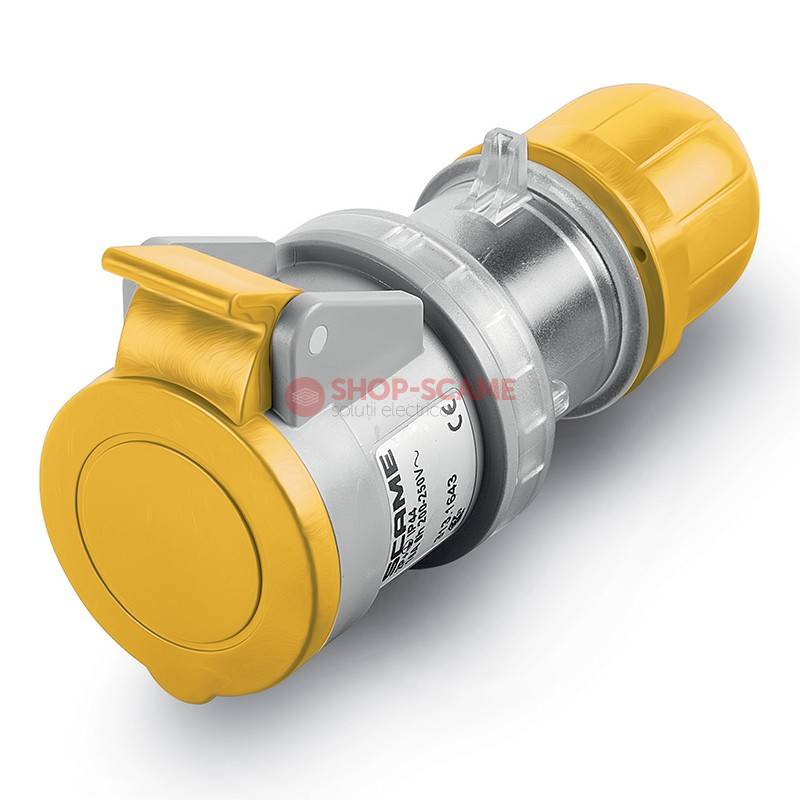

CONNECTOR 2P+E IP44 16A 4h 100-130V AC SCAME 313.1640P.TR

Cod EAN: 8001636224169

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 46.96 Lei / 1

Pret cu TVA: 56.82 Lei / 1

«« Inapoi

Inainte »»

Master data
10NR Minimum order: 0.17KG Net Weight: 8001636224169 EAN code: 85366990 INTRASTAT code:

TechData
OPTIMA Series Commercial series: CONNECTOR Synthetical description: 16A Rated current: 2P+E Poles: 4h Hour position: 100-130V Rated voltage: 50Hz Working frequency: 60Hz Working frequency: YELLOW Colour: IP44/IP54 Protection degree: STRAIGHT Types of available outlets: Perforating terminals Terminals: CABLE GLAND Cable outlet:

Packaging
Carton Description: 50 Quantity: 8001636675046 EAN code: 9.65 KG Gross weight: 36012.5 CCM Volume: 250X335X430 (MM) Dimensions: Box Description: 10 Quantity: 8001636675039 EAN code: 1.93 KG Gross weight: 5428 CCM Volume: 115X295X160 (MM) Dimensions:

Note:

Transparent grip

Approvals and Certifications

View certificate

Standards and Laws

	EN 60309-1 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations
	EN 60309-1/A1 (2007) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2/A1 (2007) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations
	EN 60309-1/A2 (2012) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-2/A2 (2012) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 2: Dimensional interchangeability requirements for pin and contact-tube accessories of harmonized configurations

Annexed
