» Adaptoare industriale IP44/IP67

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

610.3746

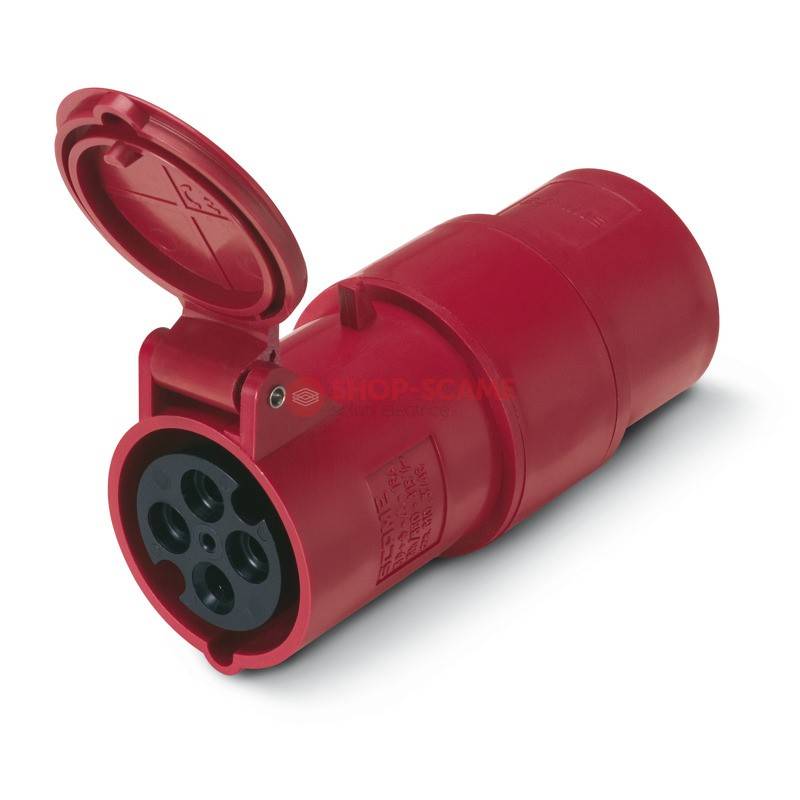

CONFIG. ADAPT. FROM 3P+N+E16A TO 3P+E16A SCAME 610.3746

Cod EAN: 8001636015620

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 142.21 Lei / 1

Pret cu TVA: 172.07 Lei / 1

CONFIG. ADAPT. FROM 3P+N+E16A TO 3P+E16A SCAME 610.3746

Master data
10NR Minimum order: 0.255KG Net Weight: 8001636015620 EAN code: 85366990 INTRASTAT code:

TechData
ADAPTO Series Commercial series: ONE-WAY ADAPTOR Synthetical description: IP44 Protection degree: Plug IEC 309 3P+N+E 16A Inlet supply unit: 16A Rated current: 3P+N+E Poles: 400V Rated voltage: 1 No. of sockets 3P+E 16A: 1 No. of sockets 3P+N+E 16A:

Packaging
Box Description: 10 Quantity: 8001636984407 EAN code: 2.73 KG Gross weight: 10120.855 CCM Volume: 223X313X145 (MM) Dimensions:

Note:

The adaptor’s 16A 3P+N+E plug is first plugged into the 16A 3P+N+E power supply socket and then the 16A 3P+E plug of the load to be supplied is plugged into the adaptor’s 16A 3P+E socket.

For temporary use only

Used to supply 16A loads with 3P+E plugs from 16A 3P+N+E power supply sockets.

Approvals and Certifications

View certificate

Standards and Laws

	IEC 60309-2 (1999) View certificate
[International Standard] Plugs, socket-outlets and couplers for industrial purposes. Part: 2: Dimensional interchangeability requirements for pin and contact-tube accessories
	IEC 60309-1 (1999) View certificate
[International Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements

Annexed
