» Elemente de imbinare si accesorii tub

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

864.716

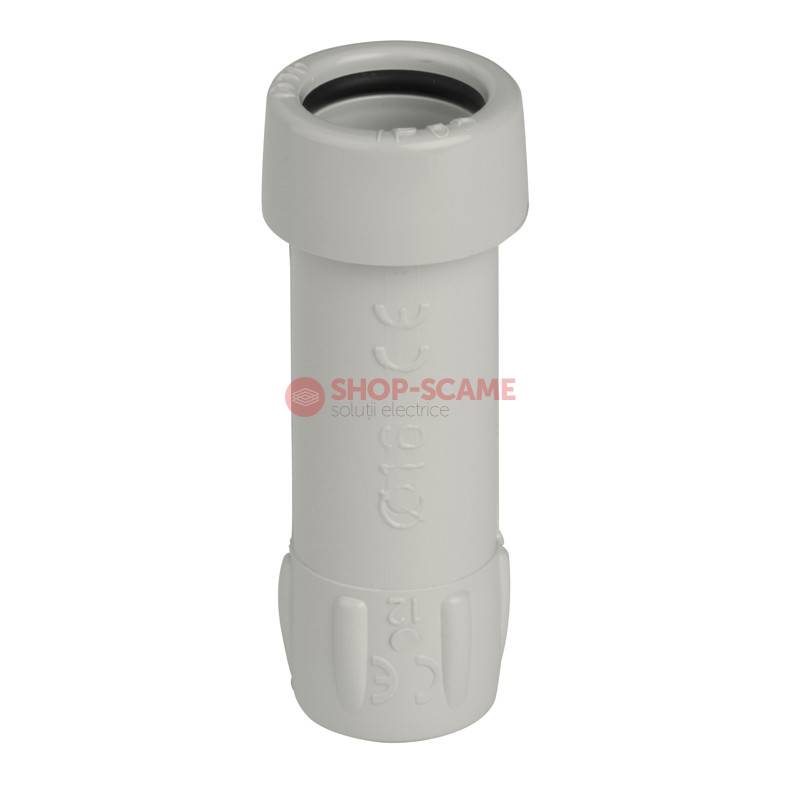

CONDUIT TO SHEAT COUPLING IP65 GREY D.16 SCAME 864.716

Cod EAN: 8001636019376

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 3.87 Lei / 100

Pret cu TVA: 4.68 Lei / 100

«« Inapoi

Master data
50NR Minimum order: 10.3G Net Weight: 8001636019376 EAN code: 85369001 INTRASTAT code:

TechData
TUBE Series Commercial series: CONDUIT COUPLING Synthetical description: IP65 Protection degree: GREY Colour: ø16mm Diameter: ø12mm Sheath:

Packaging
Carton Description: 800 Quantity: 8001636522289 EAN code: 10600 G Gross weight: 68800 CCM Volume: 400X400X430 (MM) Dimensions: Box Description: 50 Quantity: 8001636980973 EAN code: 662.5 G Gross weight: 3610 CCM Volume: 190X190X100 (MM) Dimensions:

Note:

The internal seal ensures IP65 protection even in the case of dilation due to temperature changes.

Approvals and Certifications

I.M.Q.

Standards and Laws

	EN 61386-21/A11 (2010) View certificate
[European Standard] Conduit systems for cable management. - Part 21: Particular requirements - Rigid conduit systems
	EN 61386-21 (2004) View certificate
[European Standard] Conduit systems for cable management. - Part 21: Particular requirements - Rigid conduit systems
	EN 61386-1 (2008) View certificate
[European Standard] Conduit systems for cable management. General requirements.

Annexed
