805.5432.0

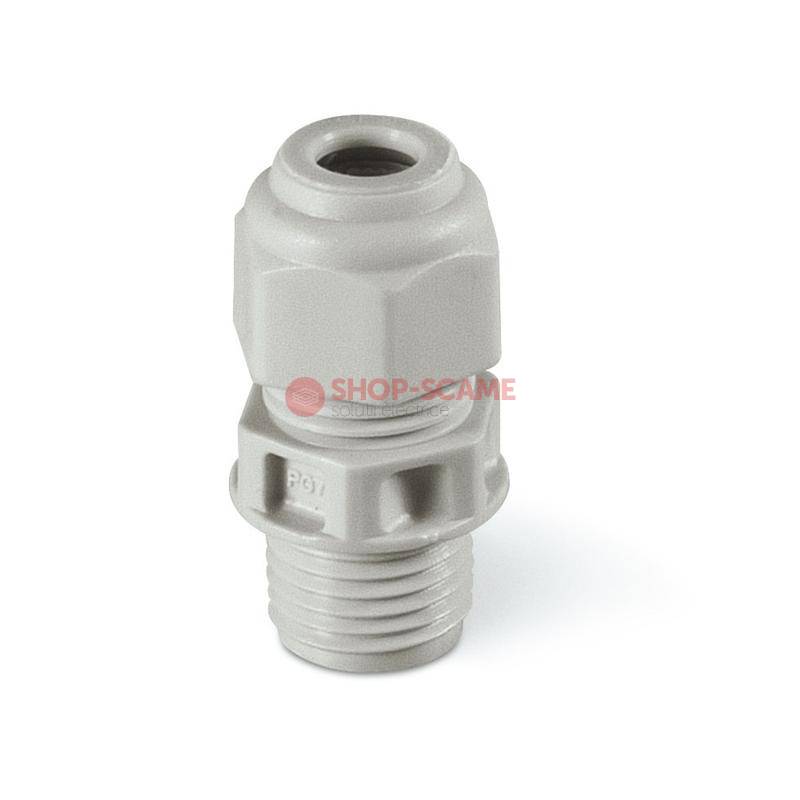

CABLE GLAND M32X1,5 NO NUT LIGHT SCAME 805.5432.0

Cod EAN: 8001636143682

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 4.21 Lei / 1

Pret cu TVA: 5.09 Lei / 1

«« Inapoi

Inainte »»

Master data
25NR Minimum order: 30.48G Net Weight: 8001636143682 EAN code: 85369010 INTRASTAT code:

TechData
UNION Series Commercial series: CABLE GLAND Synthetical description: IP66 Protection degree: LIGHT Type: GREY Colour: M32X1,5 Thread: ø32mm Fixing hole: ø18-25mm Cable size: 42mm Spanner size: 15mm Thread length: 14N/m Nut spanner coupler: 7N/m Seal spanner coupler:

Packaging
Box Description: 25 Quantity: 8001636572482 EAN code: 917.85 G Gross weight: 0 Volume: 0X0X0 () Dimensions: Carton Description: 350 Quantity: 8001636572499 EAN code: 12849.9 G Gross weight: 66990 CCM Volume: 385X580X300 (MM) Dimensions:

Note:

STANDARD version: IP66

Cable glands are provided without gasket

Approvals and Certifications

View certificate

Standards and Laws

Annexed
