» Presetupe si accesorii ip66/ip68

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

805.5412.0

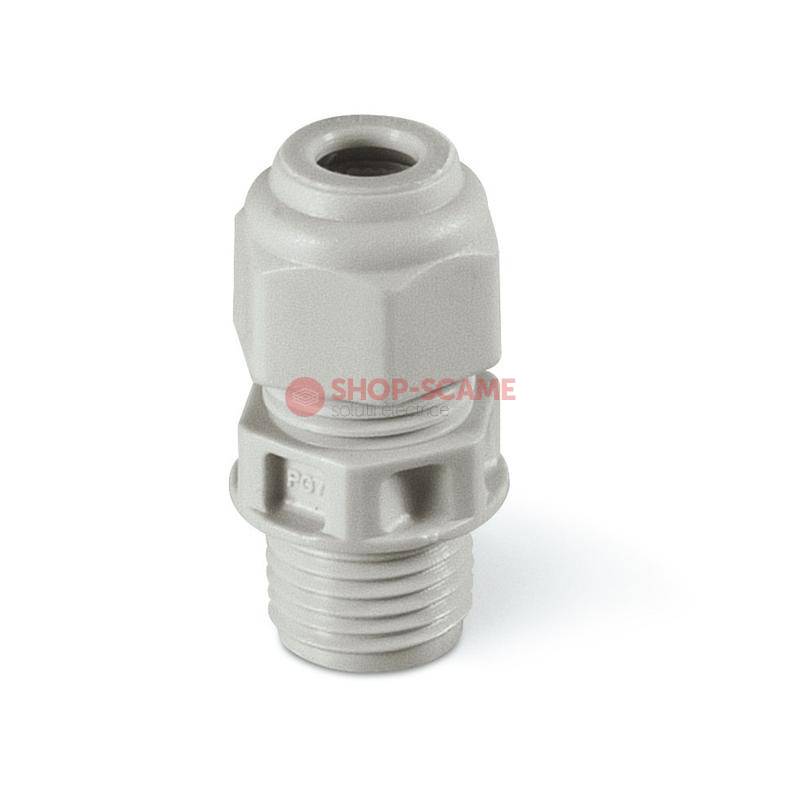

CABLE GLAND M12X1,5 NO NUT LIGHT SCAME 805.5412.0

Cod EAN: 8001636143644

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 1.13 Lei / 100

Pret cu TVA: 1.37 Lei / 100

«« Inapoi

Inainte »»

Master data
50NR Minimum order: 2.78G Net Weight: 8001636143644 EAN code: 85369010 INTRASTAT code:

TechData
UNION Series Commercial series: CABLE GLAND Synthetical description: IP66 Protection degree: LIGHT Type: GREY Colour: M12X1,5 Thread: ø12mm Fixing hole: ø3-6mm Cable size: 15mm Spanner size: 9,5mm Thread length: 2,5N/m Nut spanner coupler: 2,5N/m Seal spanner coupler:

Packaging
Box Description: 50 Quantity: 8001636572406 EAN code: 173.4 G Gross weight: 0 Volume: 0X0X0 () Dimensions: Box Description: 600 Quantity: 8001636572413 EAN code: 2080.8 G Gross weight: 9680 CCM Volume: 220X275X160 (MM) Dimensions:

Note:

STANDARD version: IP66

Cable glands are provided without gasket

Approvals and Certifications

View certificate

Standards and Laws

Annexed
