» Presetupe si accesorii ip66/ip68

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

805.3347.2

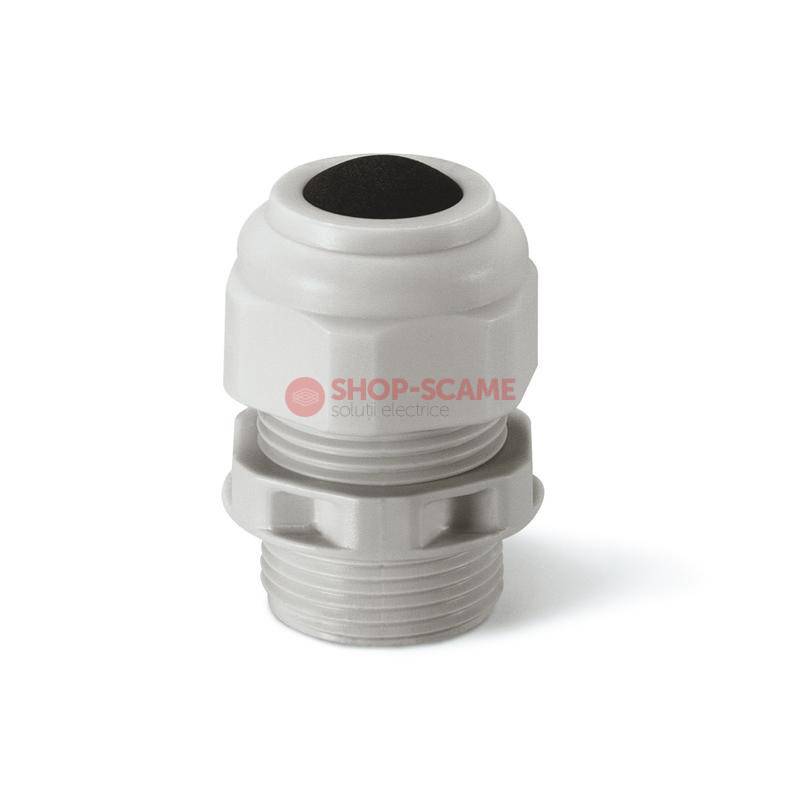

CABLE GLAND IP66 PG 36 SCAME 805.3347.2

Cod EAN: 8001636163307

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 8.46 Lei / 1

Pret cu TVA: 10.24 Lei / 1

«« Inapoi

Master data
10NR Minimum order: 0.06KG Net Weight: 8001636163307 EAN code: 85369010 INTRASTAT code:

TechData
UNION Series Commercial series: CABLE GLAND Synthetical description: IP66 Protection degree: LIGHT Type: GREY Colour: PG36 Thread: ø47,5mm Fixing hole: ø22-32mm Cable size: 53mm Spanner size: 17,5mm Thread length: 15N/m Nut spanner coupler: 12,5N/m Seal spanner coupler:

Packaging
Box Description: 10 Quantity: 8001636602127 EAN code: 0 KG Gross weight: 0 Volume: 0X0X0 () Dimensions: Carton Description: 140 Quantity: 8001636602134 EAN code: 0 KG Gross weight: 66990 CCM Volume: 385X580X300 (MM) Dimensions:

Note:

STANDARD version: IP66

Cable glands are provided without gasket

Approvals and Certifications

View certificate

Standards and Laws

Annexed
