» Cofrete si tablouri de sigurante IP40/IP66

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

632.3501-000

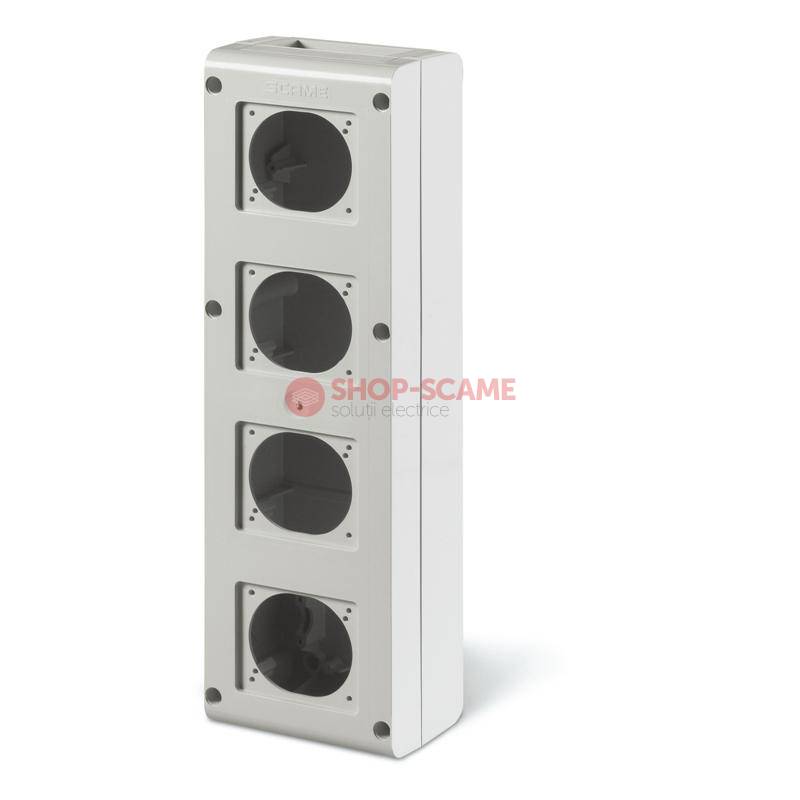

BLOCK3 DISTRIB.BOARD WITH CUTOUTS NO DIN SCAME 632.3501-000

Cod EAN: 8001636068060

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 137.22 Lei / 1

Pret cu TVA: 166.04 Lei / 1

«« Inapoi

Master data
1NR Minimum order: 0.956KG Net Weight: 8001636068060 EAN code: 85371098 INTRASTAT code:

TechData
BLOCK Series Commercial series: MODULAR ENCLOSURE Synthetical description: SURFACE MOUNTING Mounting version: IP66 Protection degree: 136x440x105mm Dimensions: 9W Dissipable power:

Packaging
Carton Description: 4 Quantity: 8001636753560 EAN code: 4.444 KG Gross weight: 36800 CCM Volume: 320X460X250 (MM) Dimensions:

Note:

(*) Cut-outs suitable for 32A socket outlets with 84x106 mm flange

70x87mm cut-outs

Power dissipation calculated in conformity with CEI 23-49 italian standards

Approvals and Certifications

I.M.Q.

Standards and Laws

	EN 60670-1 (2005) View certificate
[European Standard] Boxes and enclosures for electrical accessories for household and similar fixed electrical installations. General requirements
	EN 60670-22 (2006) View certificate
[European Standard] Boxes and enclosures for electrical accessories for household and similar fixed electrical installations -- Part 22: Particular requirements for connecting boxes and enclosures
