» Fise si prize industriale IP44/IP67

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

248.3297-7

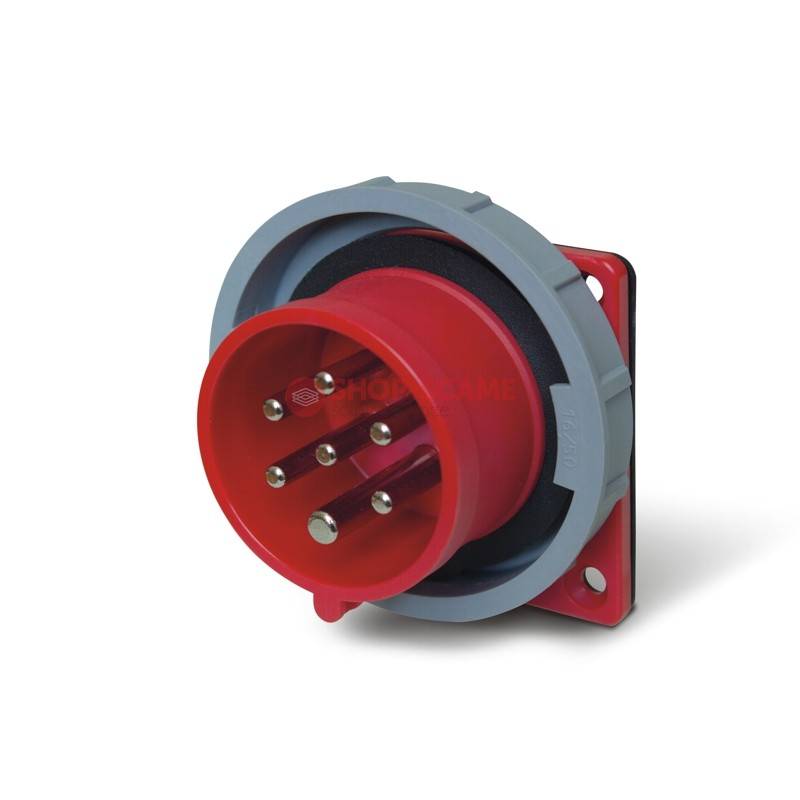

APPLIANCE INLET 6P+E IP66/IP67 32A 6h SCAME 248.3297-7

Cod EAN: 8001636301549

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 220.48 Lei / 1

Pret cu TVA: 266.78 Lei / 1

Inainte »»

Master data
10NR Minimum order: 0.272KG Net Weight: 8001636301549 EAN code: 85366990 INTRASTAT code:

TechData
OPTIMA-SEVEN Series Commercial series: FLUSH MOUNTING APPLIANCE INLET Synthetical description: 32A Rated current: 6P+E Poles: 6h Hour position: 380-415V Rated voltage: 50Hz Working frequency: 60Hz Working frequency: RED Colour: IP66/IP67 Protection degree: STRAIGHT Types of available outlets: Screw terminals Terminals: 75X75MM Flange:

Packaging
Box Description: 10 Quantity: 8001636748184 EAN code: 2.86 KG Gross weight: 8436 CCM Volume: 185X285X160 (MM) Dimensions:

Note:

Screw terminals

Approvals and Certifications

View certificate

Standards and Laws

	EN 60309-1 (1999) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-1/A1 (2007) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
	EN 60309-1/A2 (2012) View certificate
[European Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
