670.9566-466

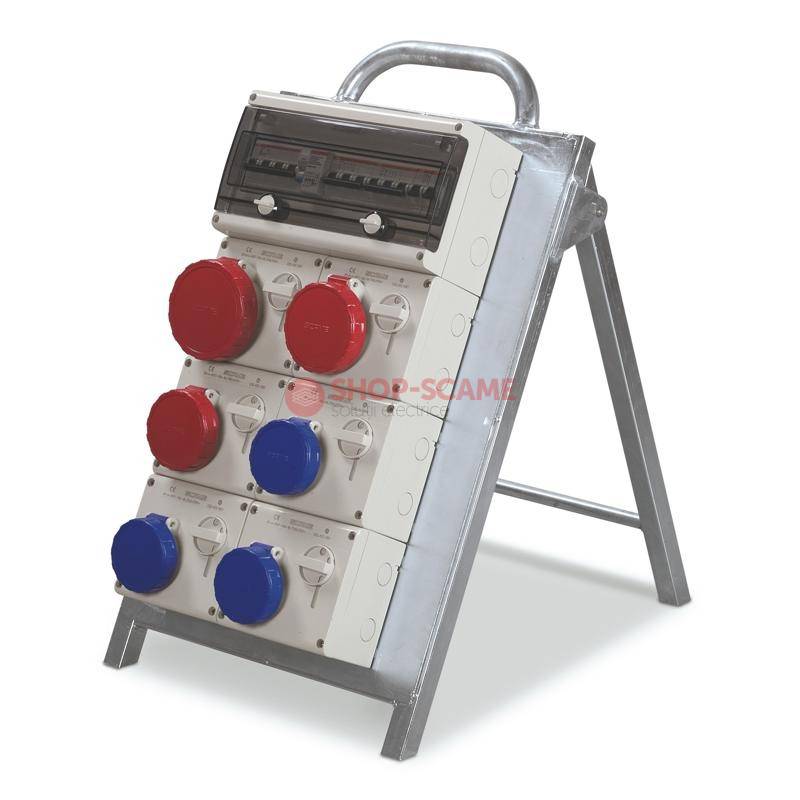

ACS DISTRIBUTION ASSEMPLY WITH STAND SCAME 670.9566-466

Cod EAN: 8001636104669

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 9881.66 Lei / 1

Pret cu TVA: 11956.81 Lei / 1

Inainte »»

Master data
1NR Minimum order: 14.707KG Net Weight: 8001636104669 EAN code: 85371098 INTRASTAT code:

TechData
MOBIL Series Commercial series: DISTRIBUTION ASSEMBLY (ACS) Synthetical description: IP66 Protection degree: Appliance inlet Inlet supply unit: 6 No. of available outlets: 4 No. of sockets 2P+E 16A: 1 No. of sockets 3P+E 16A: 1 No. of sockets 3P+E 32A: RCBO 4P 32A 0,03A In disp. ing/tipo apparecchio: 18 KW Max power: 4 No. MCB 1P 16A: 1 No. MCB 3P 16A:

Packaging
Carton Description: 1 Quantity: 8001636524122 EAN code: 15.687 KG Gross weight: 75686 CCM Volume: 410X710X260 (MM) Dimensions:

Note:

Appliance inlet IEC309 32A 3P+N+E

Approvals and Certifications

View certificate

Standards and Laws

EN 61439-4 (2013-03)

[European Standard] Low-voltage switchgear and controlgear assemblies - Part 4: Particular requirements for assemblies for construction sites (ACS)

Annexed

Wiring diagram 56.55 KB
