» Adaptoare industriale IP44/IP67

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

605.3227/C

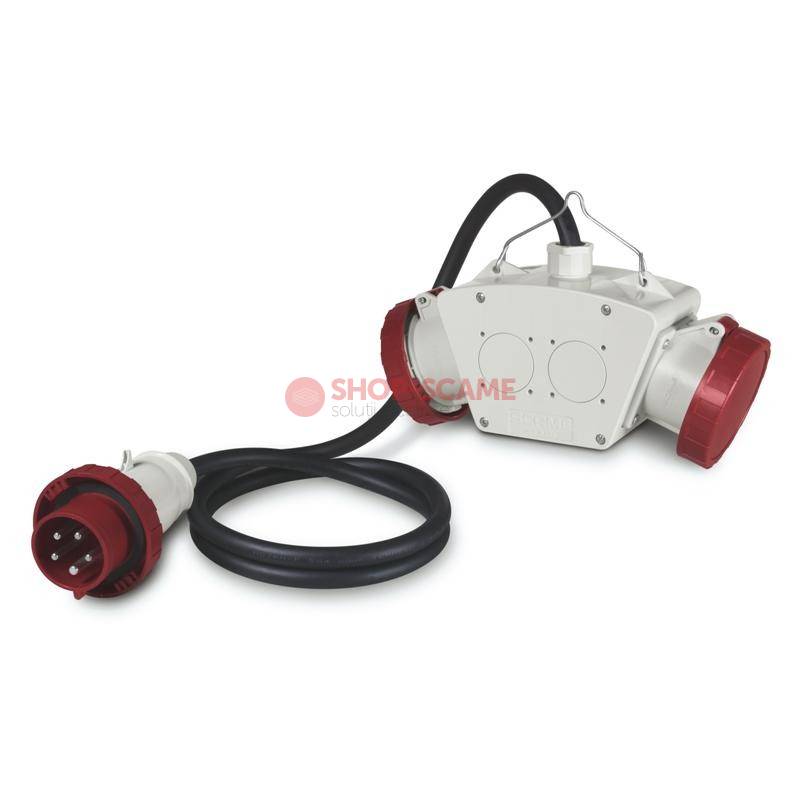

2-WAY ADAPTOR 3P+N+E 32A IP66 W/CABLE SCAME 605.3227/C

Cod EAN: 8001636043432

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 661.24 Lei / 1

Pret cu TVA: 800.10 Lei / 1

Inainte »»

Master data
6NR Minimum order: 2.182KG Net Weight: 8001636043432 EAN code: 85366990 INTRASTAT code:

TechData
ADAPTO Series Commercial series: MULTI -WAY ADAPTOR Synthetical description: IP66 Protection degree: Plug IEC 309 3P+N+E 32A Inlet supply unit: 32A Rated current: 3P+N+E Poles: 400V Rated voltage: 2 No. of sockets 3P+N+E 32A: 5x4mm² Cable section:

Packaging
Carton Description: 6 Quantity: 8001636945590 EAN code: 14.886 KG Gross weight: 80613.75 CCM Volume: 350X555X415 (MM) Dimensions: Box Description: 1 Quantity: 8001636933207 EAN code: 2.481 KG Gross weight: 9680 CCM Volume: 220X275X160 (MM) Dimensions:

Note:

Zinc-plated steel carrying handle (32A).

2m rubber cable H07RN-F

Equipped with PG21 cable gland, cable clamp and terminal block.

Approvals and Certifications

View certificate

Standards and Laws

	IEC 60309-2 (1999) View certificate
[International Standard] Plugs, socket-outlets and couplers for industrial purposes. Part: 2: Dimensional interchangeability requirements for pin and contact-tube accessories
	IEC 60309-1 (1999) View certificate
[International Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements
