» Adaptoare industriale IP44/IP67

Fotografiile prezentate au caracter informativ, pot diferi fata de produsul vandut, acesta fiind livrat conform codului oferit de producator.

605.1626/C

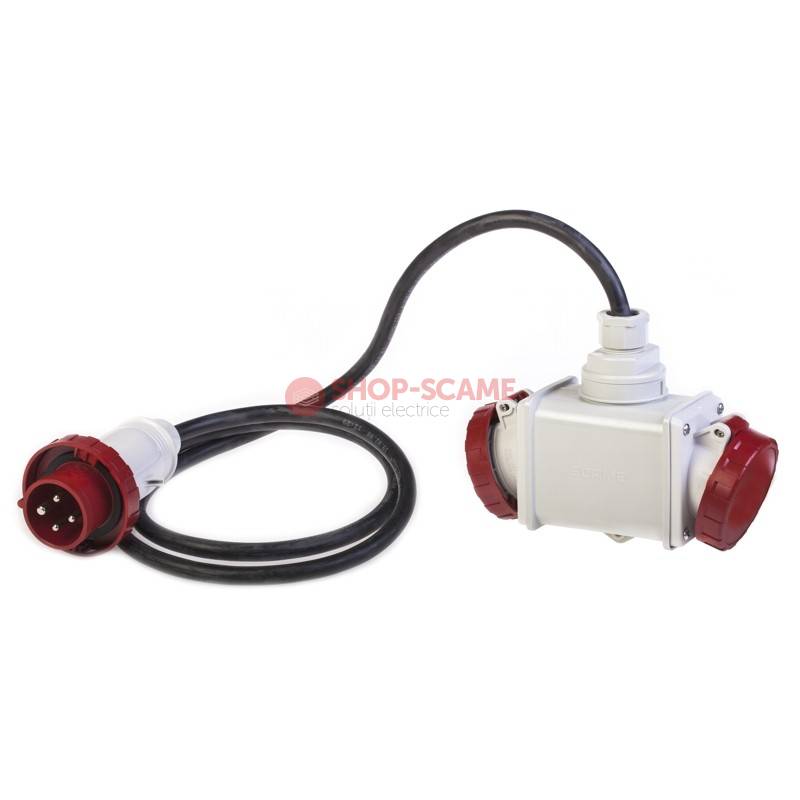

2-WAY ADAPTOR 3P+E 16A IP66 W/CABLE SCAME 605.1626/C

Cod EAN: 8001636043364

Marca: Scame

Cantitate minima: 1

Pret fara TVA: 360.67 Lei / 1

Pret cu TVA: 436.41 Lei / 1

Inainte »»

Master data
6NR Minimum order: 1.23KG Net Weight: 8001636043364 EAN code: 85366990 INTRASTAT code:

TechData
ADAPTO Series Commercial series: MULTI -WAY ADAPTOR Synthetical description: IP66 Protection degree: Plug IEC 309 3P+E 16A Inlet supply unit: 16A Rated current: 3P+E Poles: 400V Rated voltage: 2 No. of sockets 3P+E 16A: 4x4mm² Cable section:

Packaging
Carton Description: 6 Quantity: 8001636945668 EAN code: 9 KG Gross weight: 47643.75 CCM Volume: 225X550X385 (MM) Dimensions: Box Description: 1 Quantity: 8001636933276 EAN code: 1.5 KG Gross weight: 7128 CCM Volume: 220X270X120 (MM) Dimensions:

Note:

2m rubber cable H07RN-F

Equipped with PG21 cable gland, cable clamp and terminal block.

Approvals and Certifications

View certificate

Standards and Laws

	IEC 60309-2 (1999) View certificate
[International Standard] Plugs, socket-outlets and couplers for industrial purposes. Part: 2: Dimensional interchangeability requirements for pin and contact-tube accessories
	IEC 60309-1 (1999) View certificate
[International Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements

Annexed
